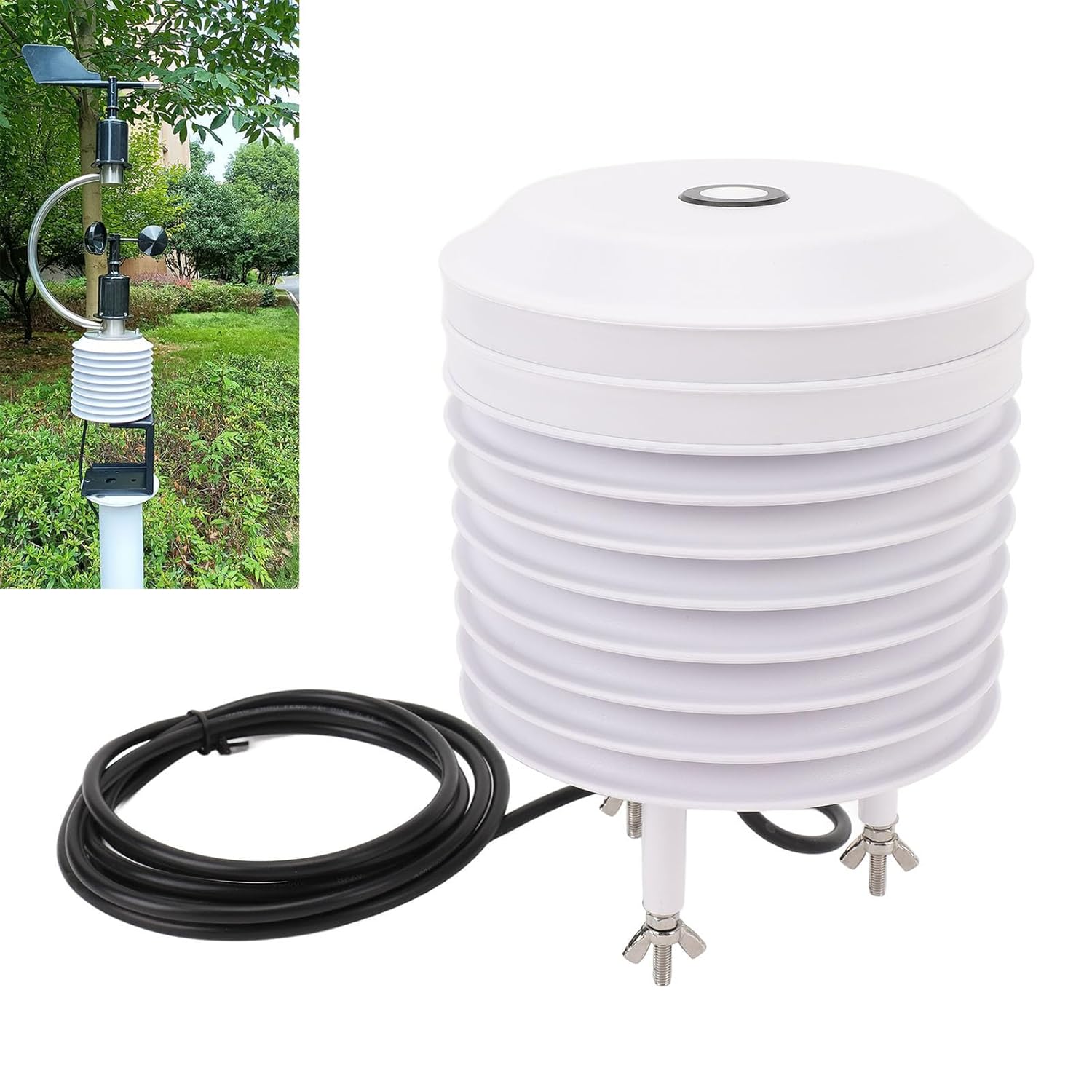

Weather Sensor Louver Box, 4 in 1 CO2 Light Intensity Atmosphere Temperature Humidity Transmitter, Outdoor Environmental Monitoring (YGC-BYX-M-KV-A1)

Weather Sensor Louver Box, 4 in 1 CO2 Light Intensity Atmosphere Temperature Humidity Transmitter, 9-30V 4-20mA Output, Outdoor Environmental MonitoringItem Type: Weather Station Louver BoxMaterial: ABSWeight: Approx. 1265.00g/44.62ozFeatures: Atmosphere Temperature, Atmosphere Humidity, Light Intensity, CO2Power Supply: 9 to 30VInstallation Size with Bending Plate: Approx. 262x215mm/10.31x8.46inLouver Box Size: Approx. 140x127mm/5.51x5.00inLight Intensity: 0 to 200000Lx (Outdoor), 0 to 65535Lx (Indoor) Measuring Range, ±4% Accuracy, 1Lx Resolution, 0.1mW Power ConsumptionCO2: 0 to 5000ppm Measuring Range, ±(50ppm+5%) Accuracy, 1ppm Resolution, 100mW Power ConsumptionAtmosphere Temperature: -20 to 50℃ (Analog Signal Output) Measuring Range, ±0.3℃ (Standard) Accuracy, 0.1℃ Resolution, 1mW Power ConsumptionAtmosphere Humidity: 0 to 100%RH Measuring Range, ±5%RH (Standard) Accuracy, 0.1%RH Resolution, 1mW Power ConsumptionSensor Total Power Consumption = Multielement Power Consumption + Main Board Basic Power ConsumptionOperating Environment: -40℃~+75℃Main Board Basic Power Consumption: 200mWProtective Level: IP54Wiring: Wire Color: Wire Sequence (Current Analog Signal) Red Wire: VCC Positive Power SupplyGreen Wire: GND Negative Power SupplyBlack Wire: Signal Line 1Yellow Wire: Signal Line 2White Wire: Signal Line 3Brown Wire: Signal Line 4Package List：1 x Louver Box1 x Bent Plate1 x User Manual

• Comprehensive Environmental Monitoring: This integrated sensor simultaneously tracks four critical parameters—atmospheric temperature, humidity, light intensity, and CO2 levels. Engineered for outdoor use, it operates on a broad voltage range of 9 to 30V, ensuring consistent performance in diverse settings. The device delivers consolidated data through a single signal line, simplifying system integration and reducing installation complexity.
• Robust Build for Outdoor Use: The louver box is constructed using materials that avoid degradation from prolonged sun exposure and offer improved thermal properties. Its structural design promotes accurate readings by minimizing solar heat absorption and allowing optimal air circulation. This construction makes the unit suited for use in demanding climates, from intense heat to cold conditions, maintaining consistent operation and measurement integrity over extended periods.
• Streamlined Installation Process: Designed for user convenience, the sensor features a straightforward wiring setup with only one signal output line, significantly reducing installation time and potential errors. Mounting is achieved quickly using basic fasteners. The compact and integrated form factor not only simplifies setup but also provides a clean, professional appearance when installed in the field, eliminating the need for additional enclosures or complex assemblies.
• Consistent and Accurate Data Collection: The sensor provides stable and precise measurements essential for informed environmental decision-making. Its calibration and sensing elements are selected to minimize drift and maintain accuracy over time. The simple installation, requiring just a few screws, ensures the unit is positioned correctly without specialized tools, facilitating dependable data collection for analytical and monitoring purposes immediately after setup.
• Broad Application Across Industries: This sensor is developed for professional monitoring in sectors including farming, meteorology, forestry, energy production, and infrastructure management. It delivers critical environmental data for applications such as climate research, crop management, facility operation, and compliance monitoring. Its durable build and consistent performance make it a practical tool for gathering actionable information in permanent or temporary outdoor installations.
